Introduction
Azure monitor is the central service where all your logs and metrics are stored from the resource that are configured to use diagnostics and metrics.
The cost for Azure monitor is mainly based and storage you use for your logs data so it’s good to understand which logging is enabled and what the impact is when enabling this.
Azure monitor can be very insightful but should be used with care and you should monitor your monitoring… monitors… get it ;)
Log Analytics service explained (at least as i see it)
Most resources and services in Azure have some sort of diagnostics feature. To enable diagnostics logging, or app insights, for your resources, you need to send this data to a Log Analytics Workspace. Based on your requirements you can have either a single workspace, or create separate workspaces.
An example use case for separate workspaces could be that some data logged is classified and not everyone should be able to access it.
There are many different services in Azure which produce logs and many other services which consume the log data from the workspaces. This is then used to analyze your environment, display dashboards, generate alerts or trigger automated tasks.
A workspace contains data in the form of semi-structured tables and each table has it’s own schema [1]. Some tables are generic and can contain data from multiple resources, like AppExceptions and some are more specific to a resource type, like FunctionAppLogs.
Resources in Azure can also log to multiple logs at the same time. This requires you to sometimes merge data from different logs. The later is for a different topic but gives an idea of the complexity of log analytics in general.
The focus of today’s blog
This blog focusses on getting more insights into the data of your logs and the log producers. And although Azure monitor, and Log Analytics Workspace, have a nice interface to get some basic insights into your usage, as technical guy i want to figure this out myself ;).
Get information about usage
Each workspace has a Usage table. The Usage table keeps track of the amount of storage used for each table in the workspace. Azure monitor creates an entry every hour, for each data table, and each entry contains the amount of data collected in Mbytes. You can use this data to analyze your log consumption and optimize your cost.
See also: Azure Monitor Log reference - Usage
The usage table mapped to the Log Analytics UI
The Usage table contains all the information of all the collected logs. This means you need to drill down a bit into the data to understand the structure and how to read it.
If we look at the following screenshot we can see how the query results matches the Logs UI.
Usage
| where Solution contains "AzureResources" or DataType contains "HealthStateChangeEvent"
| summarize Count = count() by Solution, DataType
| project DataType, Solution, Count
| order by Solution asc, DataType asc
On the left we have grouped the logs by Solution. We see subnodes that represent the actual logs for this Solution. On the right you see the query and the results. Only the relevant columns are projected. You can see that a log analytics Solution in the UI actually is aggregated from different Solutions and DataTypes (Like InsightsMetrics, VMBoundPort etc.).
The
Countshows how many entries the Usage log has perSolution, perDataTypefor the given period.
So how can we use this table?
Use Case 1 - Investigate storage account logs
We can start by querying the Usage table to find the top consuming tables by Solution. The following query will do exactly that. We take the logs from the last 30 days and plot this to a pie chart.
Usage
| where TimeGenerated > startofday(ago(30d))
| where IsBillable == true
| summarize IngestedGB = sum(Quantity) / 1000 by Solution
| sort by IngestedGB desc
| render piechart

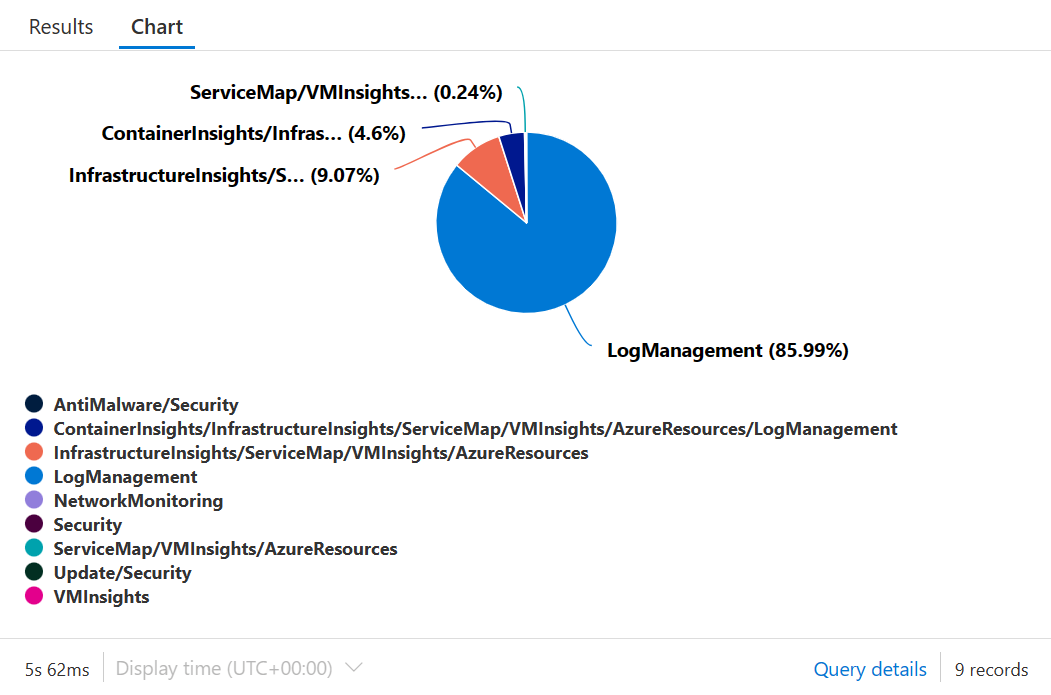

We can see that there are three main producers of the total data.
- LogManagement
- InfrastructureInsights/ServiceMap/VMInsights/AzureResources
- ContainerInsights/InfrastructureInsights/ServiceMap/VMInsights/AzureResources/LogManagement
Drill down
As we can see, the largest consumer of data is the LogManagement solution. So we need to drill down a bit more on the solution data.
The following query will add the DataType to the equation and show the top 5 logs and their respective data consumption. We use top 5 as we will probably find the largest on in these 5 logs and this makes the pie chart more readable.
Usage
| where Solution == "LogManagement"
| summarize IngestedGB = sum(Quantity) / 1000 by Solution, DataType
| project DataType, Solution, IngestedGB
| order by IngestedGB desc
| top 5 by IngestedGB
| render piechart

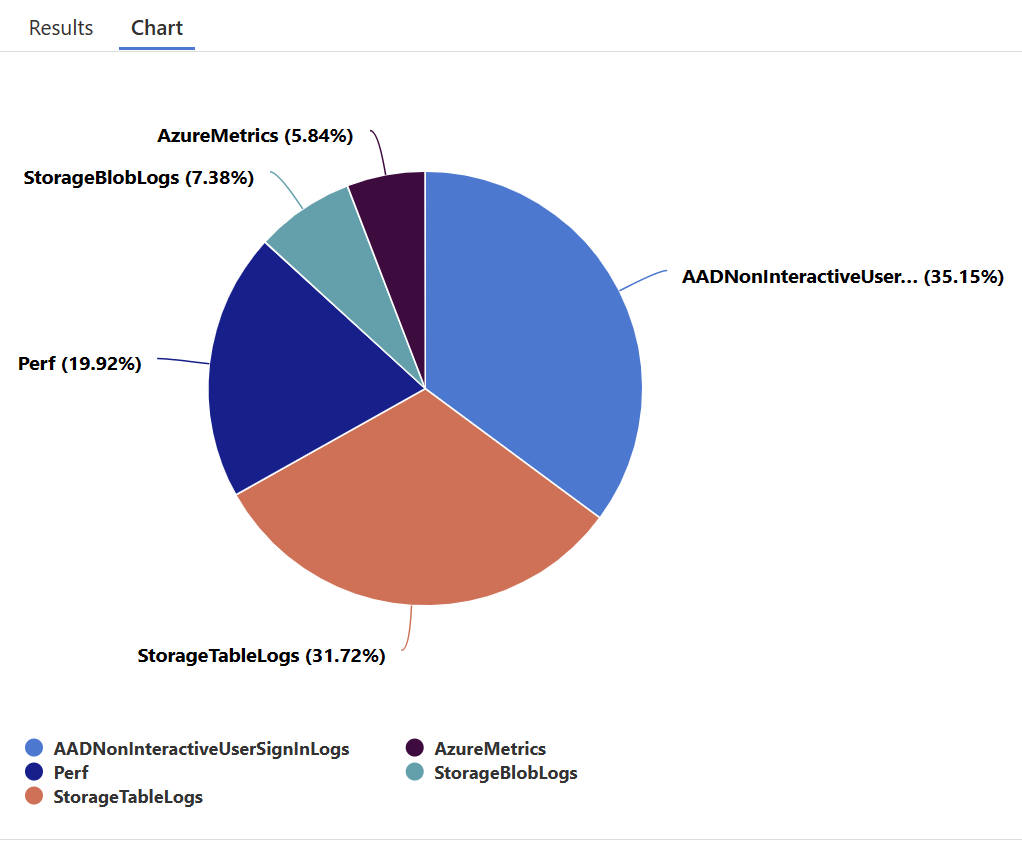

This shows us that the following logs are the largest.
- AADNonInteractiveUserSignInLogs
- StorageTableLogs
- Perf
I’m interested in the StorageTableLog as there could be some logging that might be excessive and is not required. The StorageTableLog is specific to storage accounts and contains a specific schema.
The following query will show the amount of entries that are logged per operation using the OperationName column. This could give some indication of the diagnostics settings we need to look into.
StorageTableLogs
| summarize Count=count() by OperationName
| top 5 by Count
| render piechart title = "Log count per operation"
Apparently there are a lot of insert statements into the storage table. The question is if we want to log all these actions in a normal scenario. Lets look at the top 3 storage accounts that contribute to this log size.
StorageTableLogs
| summarize Count=count() by AccountName
| top 3 by Count
| render piechart title = "Log count per account"
We can see that some are contributing to almost half of the data in the log.
Check the diagnostics settings
Let’s take a look at this storage account in the portal, in particular the diagnostics settings of this large storage account.
We can see that all the categories are selected, and that metrics is enabled. This could be a valid configuration based on your business requirements but perhaps the StorageWrite is not always required. If you have proper error handling in your application, a write error will be logged when caught. But for auditing is might be required to enable all the categories.
It’s not up to me to tell you if you need the logging, only to find it :)
Let’s look at another scenario, just to get a general idea on how to approach this topic.
Use Case 2 - The case of TMI (To much info)
Again, let’s start with the high log producers per solution. We need to run the following query.
For all the alert readers, same query, different result. Yeah, different tenant :)
Usage
| where TimeGenerated > startofday(ago(30d))
| where IsBillable == true
| summarize IngestedGB = sum(Quantity) / 1000 by Solution
| sort by IngestedGB desc
| render piechart

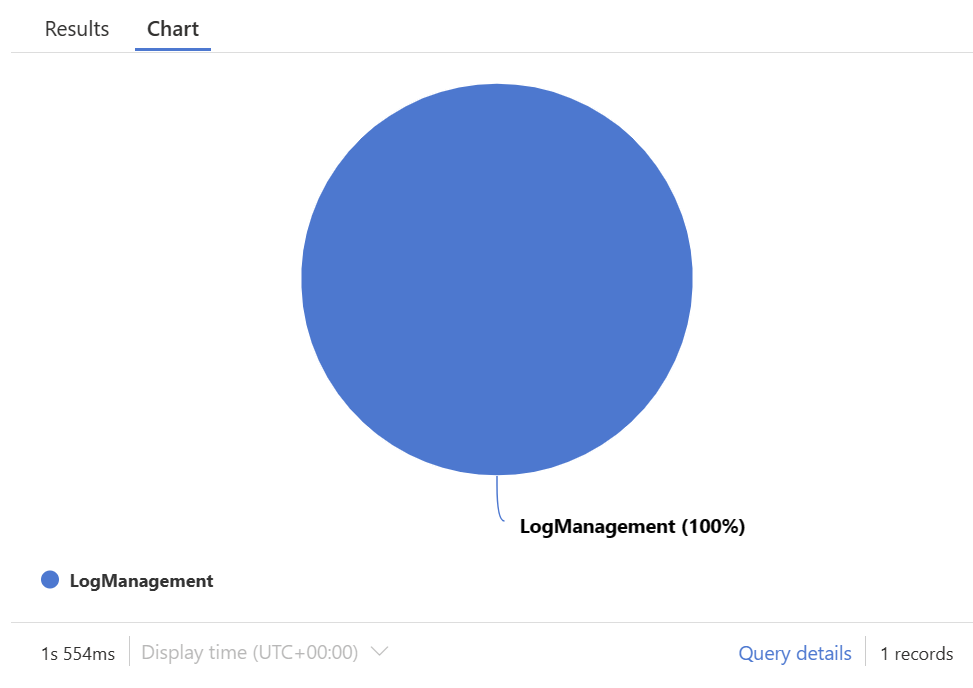

In this case only LogManagement is producing all the logs.
Let’s check the biggest log producer in this solution, this time using a bar chart to visualize the size of the logs.
Usage
| where TimeGenerated > startofday(ago(3d))
| where Solution == "LogManagement"
| summarize IngestedGB = sum(Quantity) / 1000 by Solution, DataType
| project DataType, Solution, IngestedGB
| order by IngestedGB desc
| top 5 by IngestedGB
| render barchart
This shows us that the following logs are the largest.
- AppTraces (with almost 3 GB in three days)
- AppPerformanceCounters
- AppMetrics
Checking the AppPerformanceCounters, just in case
So AppPerformanceCounters are basically metrics and are logged every 5 seconds. This is a normal behavior and is expected to result in large log tables. But let’s check for anomalies just in case.
The following query gets the top 10 instances for the AppPerformanceCounters log to check for one or more excessive logging instances.
We use
AppRoleInstancein this query to obfuscate the instance names but normally you would probably useAppRoleNameinstead,
AppPerformanceCounters
| where TimeGenerated > startofday(ago(1d))
| summarize count() by AppRoleInstance
| top 10 by count_
| render piechart
Nothing special here. All top 10 instances log evenly distributed so we can consider this normal behavior.
What about the AppTraces?
The AppTraces can be interesting to look at next.
Let first look at the log levels as this might indicate if there is actually a serious issues we are missing. The following query sums the messages based on SeverityLevel.
AppTraces
| where TimeGenerated > startofday(ago(1d))
| summarize count() by SeverityLevel
| render barchart
WNope, no issues. Severity level 1 is actually Information and perhaps this is not really required when there are no issues reported.
So who is logging all these Information messages, lets find out. Using the following query we try to get the top 10 instances that generate logs to see if one or more stand out.
Again we use
AppRoleInstanceinstead ofAppRoleNameto mask the actual names.
AppTraces
| where TimeGenerated > startofday(ago(1d))
| summarize count() by AppRoleInstance, SeverityLevel
| top 10 by count_
| render barchart

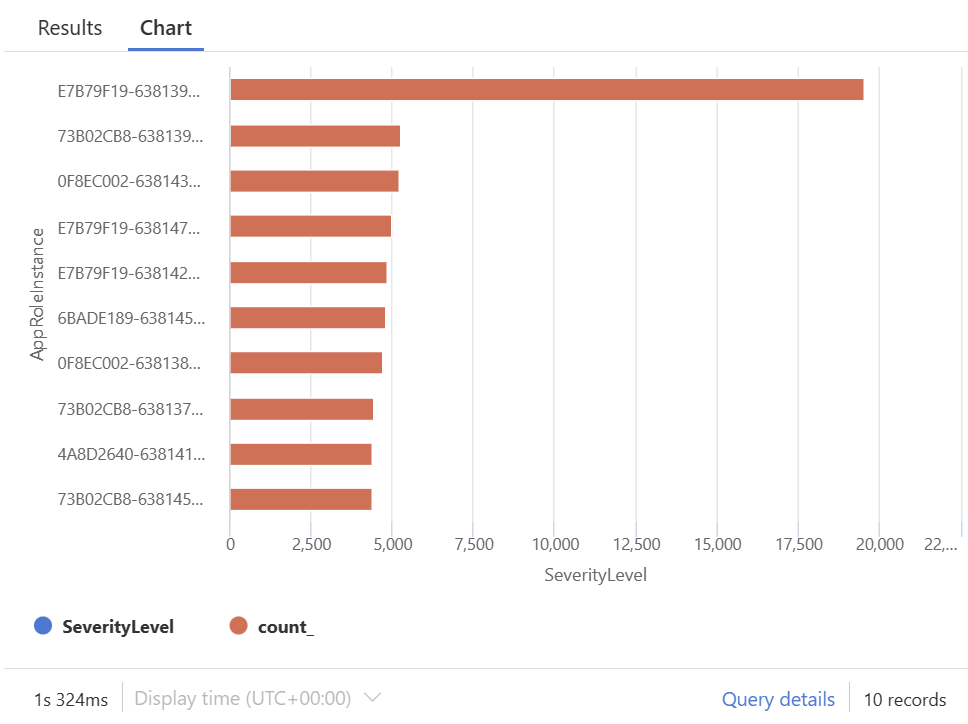

Well, one does stand out. Next thing we can now do is investigate the Azure Function App configuration and it’s logging settings to see if the logging is valid and required. In general logging on Information level is not required for normal functioning apps.
It’s a wrap… again
So i hope this blog was useful and that it gives you some insight into how you can use the kql language to do a little deep dive into you logging consumption.
